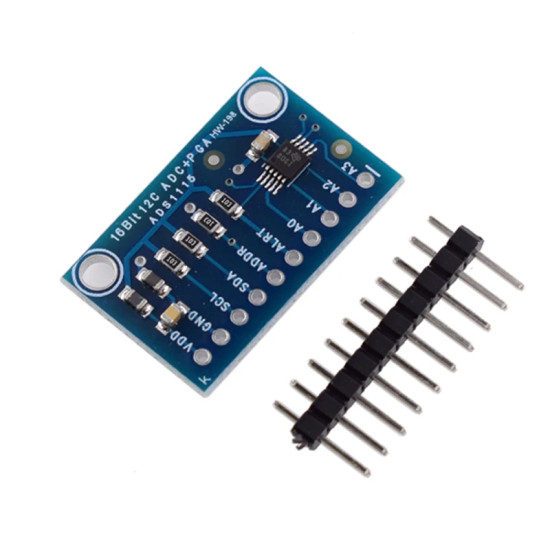

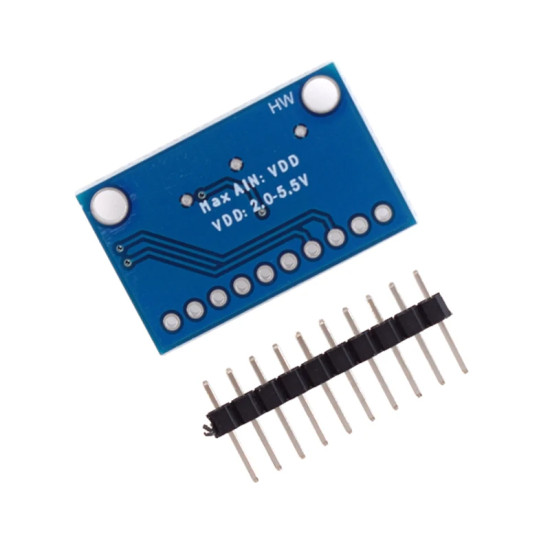

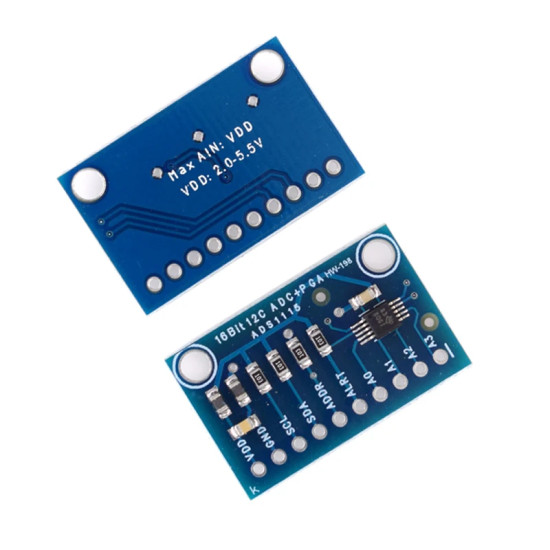

16 Bit ADS1115 Module I2C ADC 4 Channel With Pro Gain Amplifier

Description

Analog-to-Digital Converter (ADC) Bit Rate: 16-bit
Interface Type: I₂C
Channels: 4 channels (AN0, AN1, AN2, AN3) or 2 differential inputs
Input Voltage: 2.0-5.5 V
Channel Input Voltage: 0-VDD
Continuous Mode: 150 µA only
Single-shot Mode: Automatic shutdown
Programmable Data Rate: 8-860 µs per second
Programmable Input Range Control, 7 input ranges:
-0.256 V ~ +0.256 V, -0.512 V ~ +0.512 V, -1.024 V ~ +1.024 V,
-2.048 V ~ +2.048 V, -4.096 V ~ +4.096 V, -6.144 V ~ +6.144 V
7-bit I2C addresses between 0x48 and 0x4B

Applications

Mobile devices

Consumer goods

Battery monitoring

Temperature measurement

Industrial automation and process control
