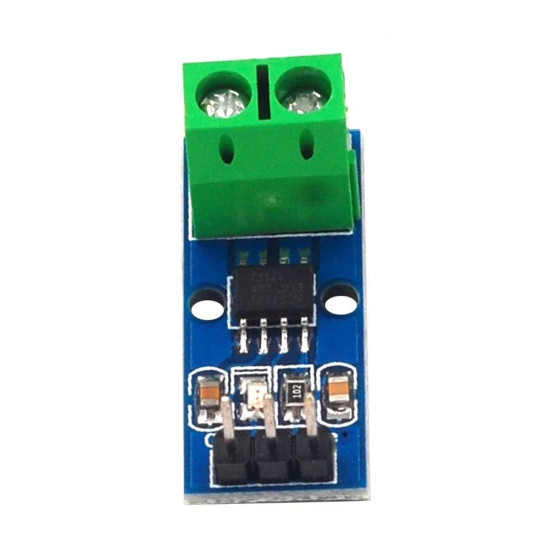

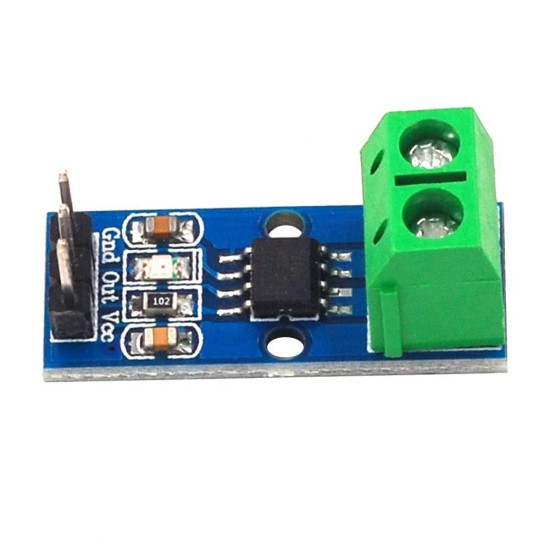

ACS712 Current Sensor Module Detector 5A Range Hall Effect Current Sensor Module

ACS712 Current Sensor Module, 5A/20A/30A Range Current Detector, Hall Effect Current Sensor Module

Features:

1. Accurate Current Sensing: The ACS712 module is equipped with the reliable ACS712ELC-05B current sensor chip, providing accurate measurements of positive and negative currents ranging from 5A to 30A. Its analog output supports a range of 100mV/A to 185mV/A, ensuring accurate current sensing for your projects.

2. Practical Power Supply: The module features an easy-to-use connector that makes it easy to connect to a power supply using a 5V power supply. It also includes a built-in LED power indicator that displays the power status during operation.

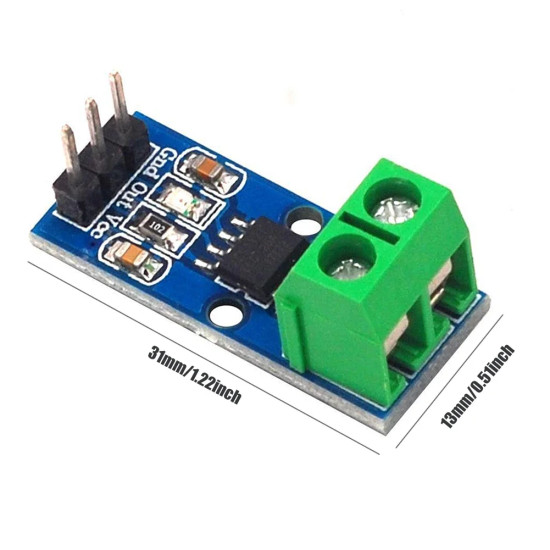

3. Compact and Versatile Design: The PCB measures only 31mm x 13mm (1.22 x 0.51 inches), making it suitable for various projects with limited space. Its small size and environmentally friendly terminal design ensure seamless integration with your electronic circuits.

4. Voltage Output Flexibility: The module provides a default voltage output of VCC/2 when no current is present, ensuring consistent and reliable readings. This flexibility makes it compatible with various microcontrollers and allows for easy data processing and analysis.

5. Magnetic Field Interference Note: The ACS712 module operates according to the Hall Effect sensing principle. To ensure accurate results, it is recommended to minimize exposure to magnetic fields during use. Follow best practices and avoid magnetic field interference for optimal performance.

Specifications:

Origin: China

Type: Module

Condition: New

Product Weight: 3g

Product Size: 31*13mm/1.22*0.51in
