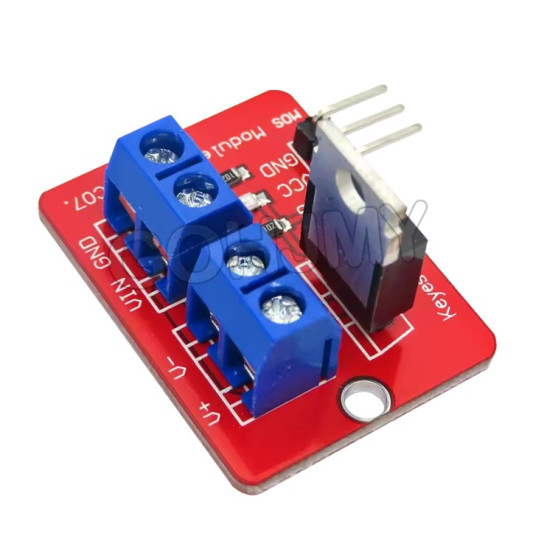

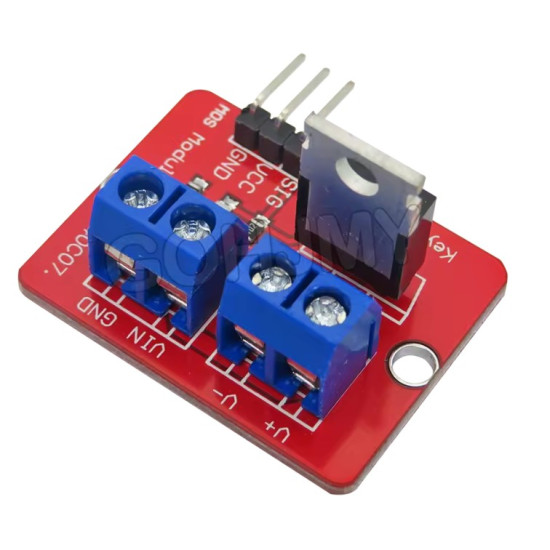

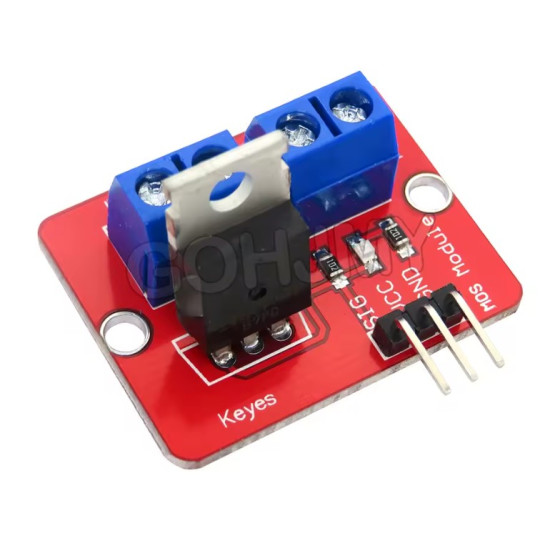

0-24V Top Mosfet Button IRF520 MOS Driver Module For MCU ARM Raspberry Pi

Product parameters:

Size: 33.4 * 25.6MM

Voltage: 3.3V, 5V

Port: the digital quantity level

The output load voltage: 0 to 24V

The output load current: < 5A (more than 1A need to add heat sink)

Platform:  MCU, ARM,

The product features:

Using original IRF520 power MOS tube, can adjust PWM output

Can let the drive up to 24 v load, such as LED lights belt, dc motor, micro pump, solenoid valve

By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation

The product instructions:

PWM signal for high level effectively

When the PWM for high level (3.3 V to 3.3 V) :

As the power supply voltage, between V + and V - working indicator, work load

When the PWM is low level (0 V to 0.5 V) :

V + and V - between 0, work lights out, don't work load
