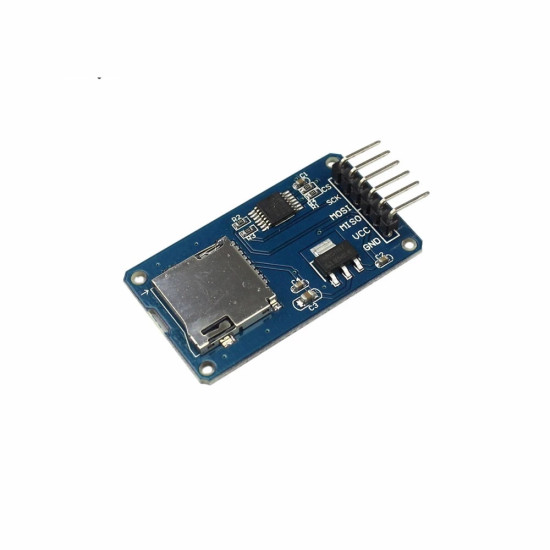

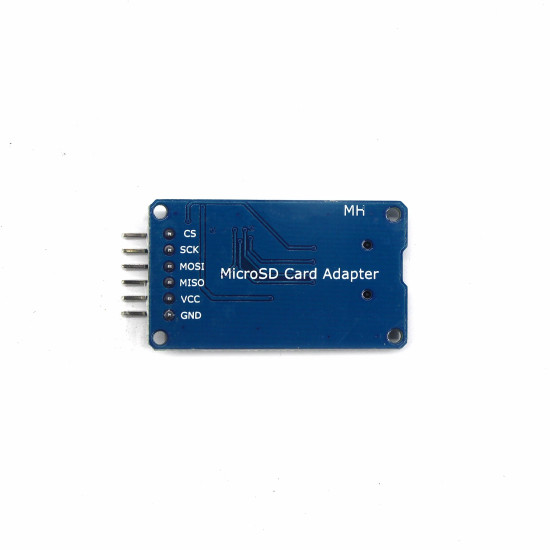

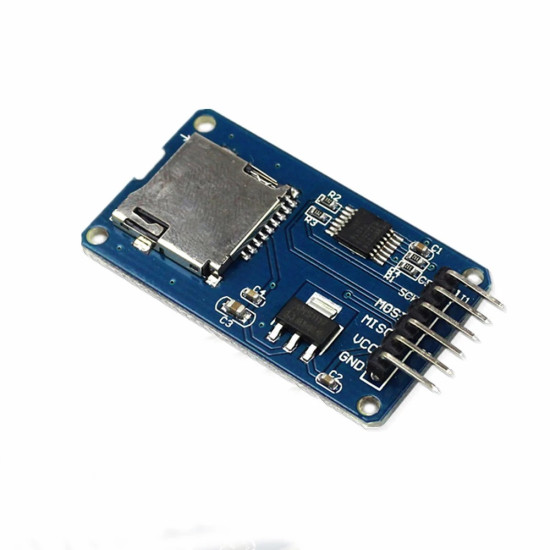

Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface

Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
-17 %
Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
Features:Support Micro SD Card, Micro SDHC card (high-speed card)The level conversion circuit board that can interface level is 5V or 3.3VCommunication interface is a standard SPI interfaceControl Interface: A total of six pins (GND, VCC, MISO, MOSI..

Write a review

Note: HTML is not translated!
Bad Good
  • Stock: In Stock
  • Model: INO-000099
  • Weight: 50.00g
SLYPRO SLYPRO
Products Sold 0
Based on 0 reviews. - Write a review
500.00DA
600.00DA
Price in reward points: 600
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product









Features:

Support Micro SD Card, Micro SDHC card (high-speed card)
The level conversion circuit board that can interface level is 5V or 3.3V
Communication interface is a standard SPI interface
Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground,
VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin;
3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply;
Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal;
Micro SD card connector: yes since the bomb deck for easy card insertion and removal.
Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination;

Specifications:
Power supply:4.5V – 5.5V, 3.3V voltage regulator circuit board
Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm
Control Interface: GND, VCC, MISO, MOSI, SCK, CS

package liste :

1 pcs Micro SD Card Module Mini TF Card Read and Write Module with SPI Interface
